Antenna/Tower Page





The north tower mounts a 2 meter ringo, 7 element 6 meter home brew beam, an 11 element 2 meter beam, and a 2 element 40 meter beam.
The tower height is 72 ft, with a 2" OD 24 ft mast, extending 17 feet for antenna mounting.
The rotor is a Yeasu G-1000DXA.

This is the start of the south tower. To date this tower has it's first set of guys in place. It is ready for mast installation. Once the full tower is up, the mast will be drawn up from the bottom through the thrust bearing on top. Attaching antennas then raising the mast and adding more antennas etc. This technique worked out really well on the north tower.

This is the start of the north tower.

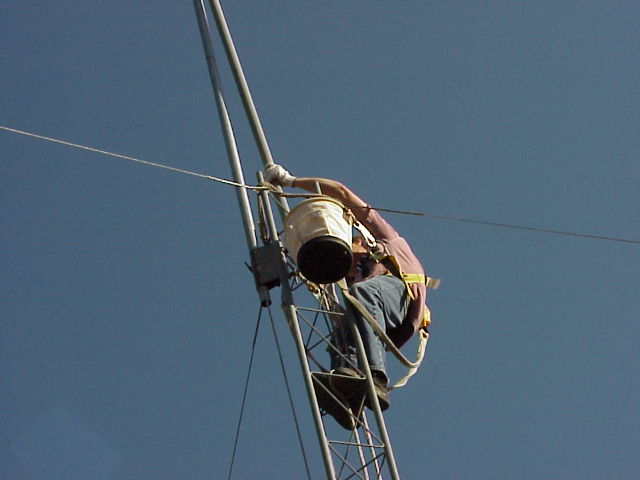

With the expert help of Dain, AA7YE, and the ground crew, the tower went together very well!

I'm putting these next pictures here because I have read about many guys requesting info on this technique. I have read great explanations of how to do it and have done so, but pictures sure help!

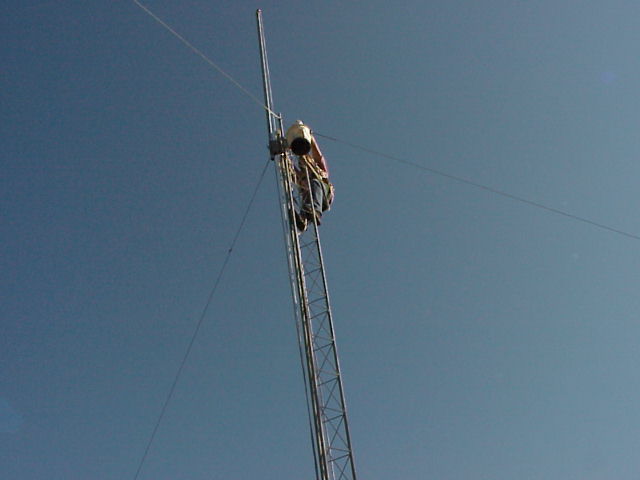

With the gin pole in place, time to put in the mast.

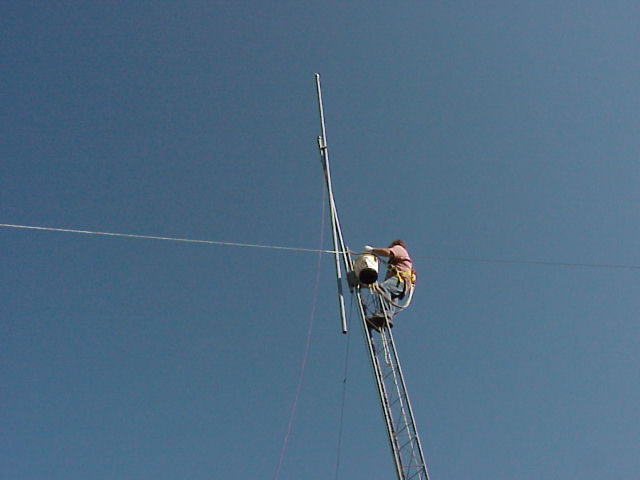

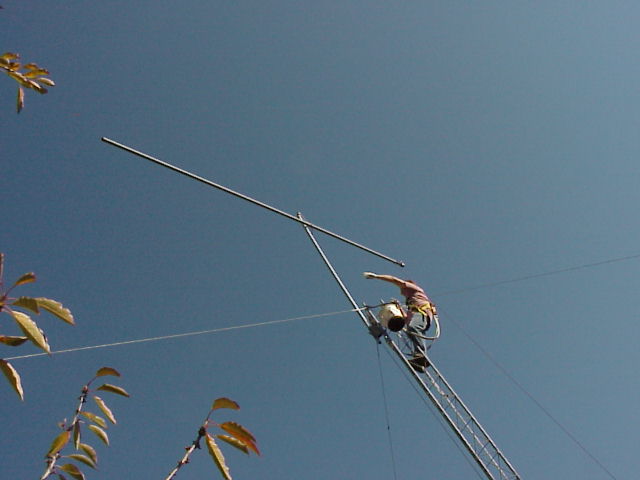

The mast is 24 feet long, 2" OD, 1/4" wall, and HEAVY!!! These specs were calculated for the load and size of antennas, by means of the MARC program. The tie point is 10 foot from the end. A muffler clamp was used as the 'stop' for the raise rope. Worked great! Somewhat tough to see is the tag line attached to the top of the mast. Once the mast is in the position shown, it is ready to be inverted and dropped down into the tower.

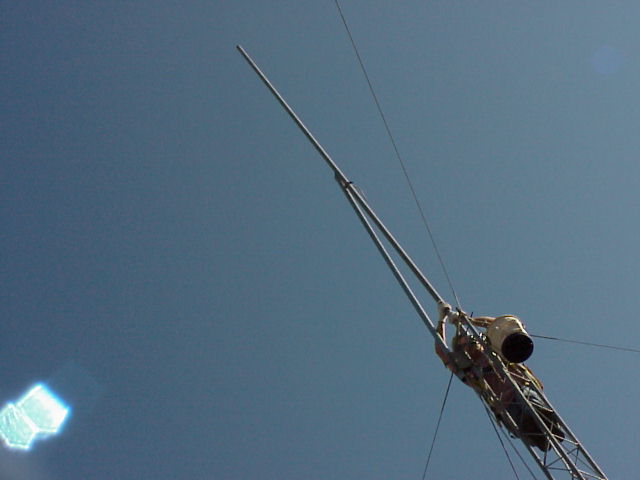

While the ground crew holds the mast in place, the tag line is slowly pulled, thus inverting the mast. Many guys prefer to do this operation after the tower is fully erected, but I preferred to put in the mast at the 30 foot level versus the 70 foot level. In my case, bringing the mast up through the bearing then attaching antennas was much easier than lowering the mast through the bearing then having to re-raise it to attach antennas.

Once the mast is inverted, the ground crew SLOWLY lowers the mast into the tower until it reaches the ground, but resting on a wood block thus enabling a rope to be placed through the center for raising later.

I must admit, I was leery of this installation technique at first, but trusting the guidance of those who are in the know and have the experience, I tried it and it really did work out slick!

I must give credit where due, through tons of information, ideas and REAL experience obtained from the gents on the Tower Talk reflector, available for sign up through, this project is working out quite well.

A BIG THANKS to all that have helped with very good info!

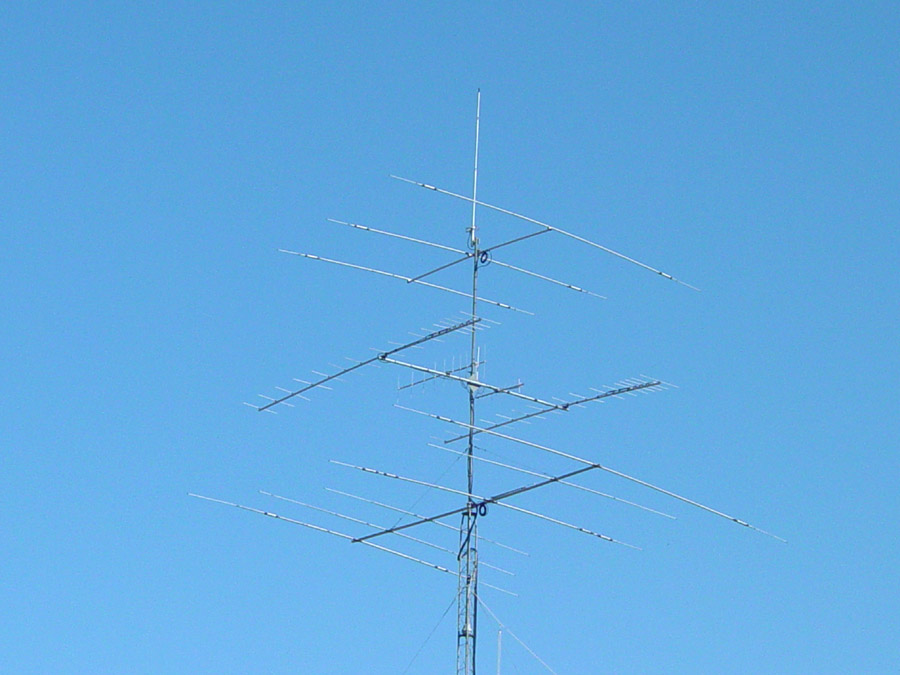

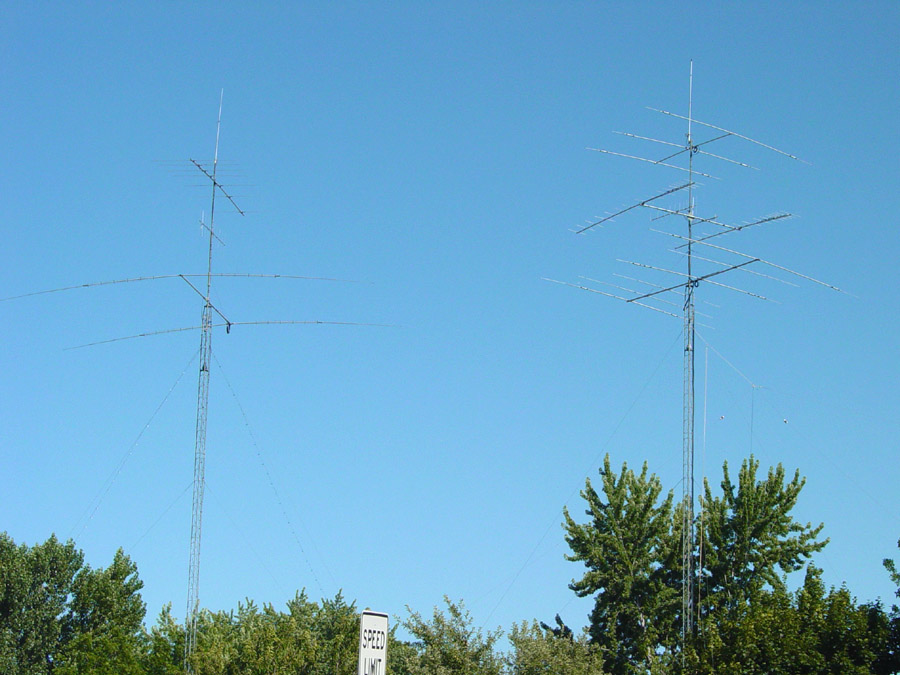

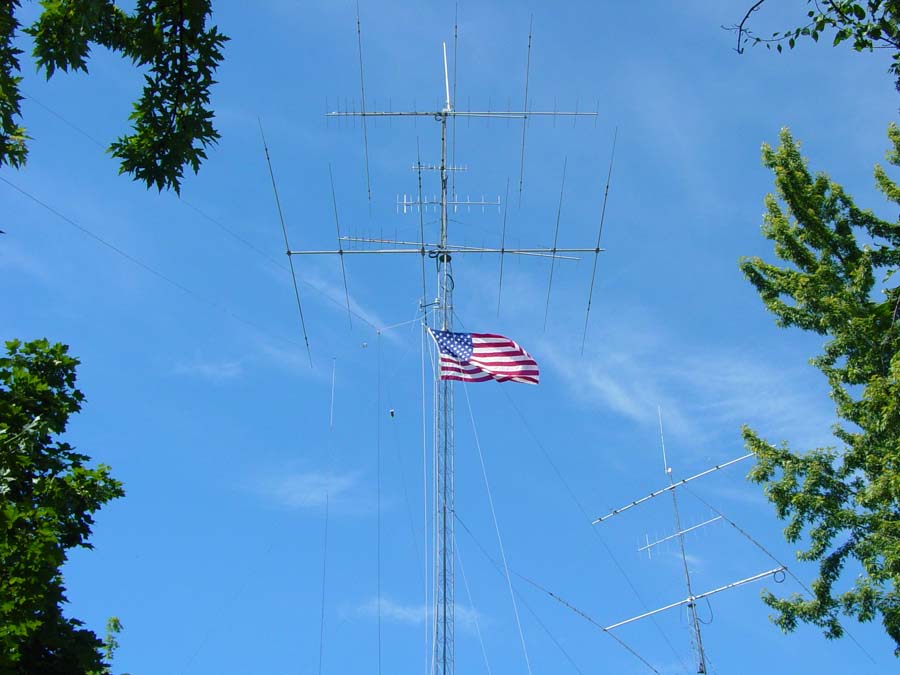

This is the fully populated south tower.

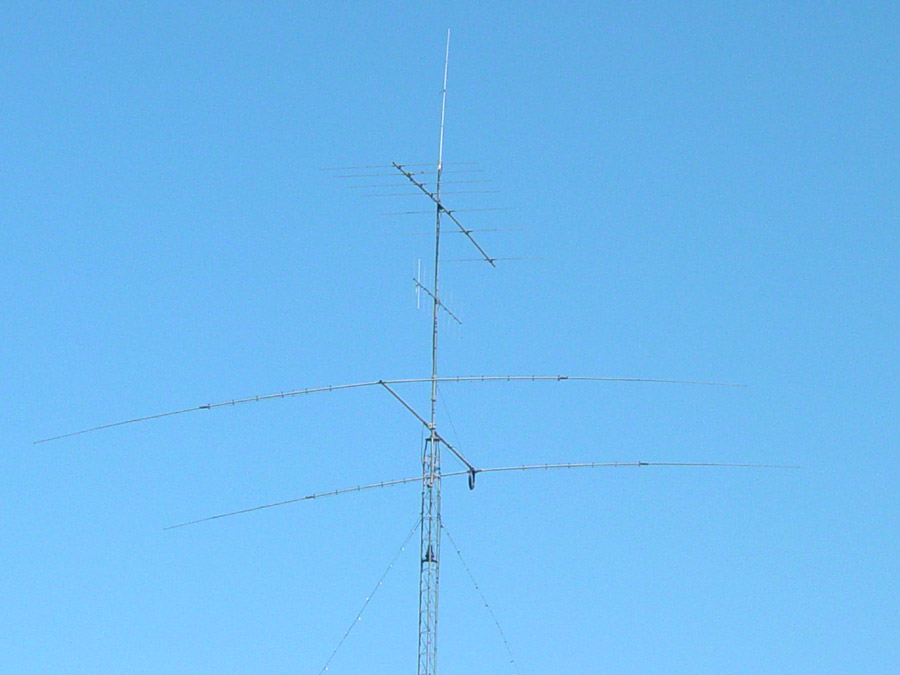

From the top:

Cushcraft 6 mtr Ringo
Cushcraft A3WS, 12/17 mtr beam
Two horizontally stacked 16 element KLM 2 mtr beams
On the above cross boom:
  an 11 element Cushcraft 440 beam
     an 11 element converted 2 meter to 220 beam
Hygain TH-6


1st half th6.jpg (324131 bytes)

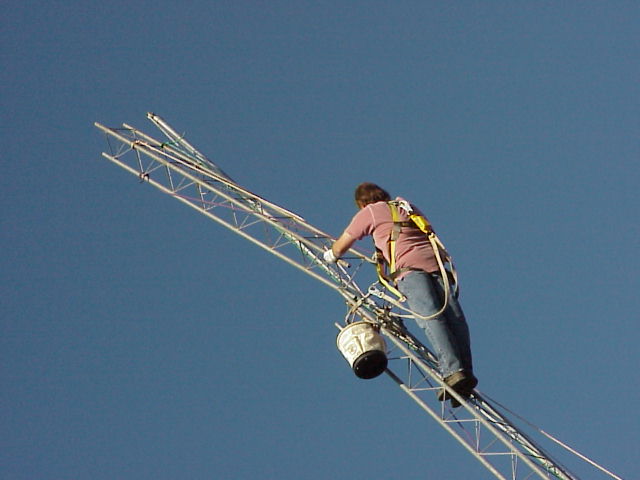

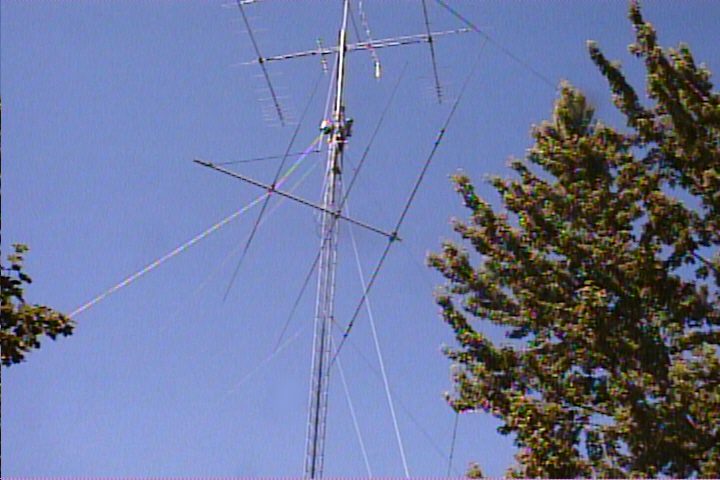

Raising the first half of the TH-6 was not too difficult, just had to be good at missing guys! :-)

2nd half th6.jpg (243942 bytes)

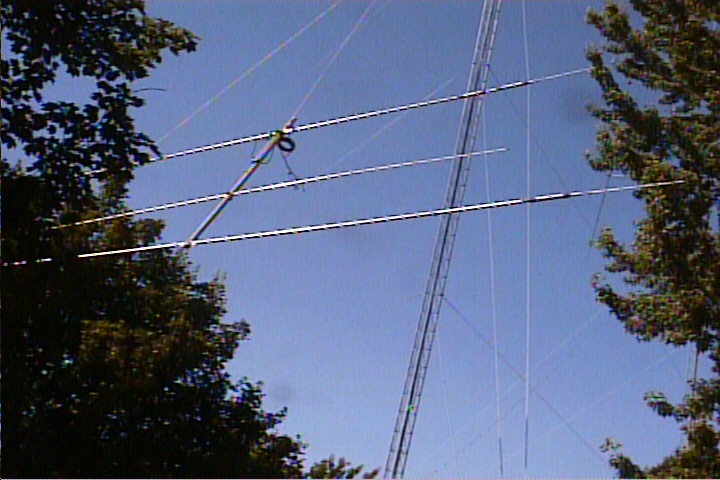

The second half went up equally well. I used one guy wire as a tram line and a rope as a temporary tram line.

Finally fully constructed! :-)
In the close up the 160 meter inverted loaded Vee can be seen.


Since there was a few feet of guy cable longer than needed, instead of cutting it off, I used it to thread through the turn buckles.

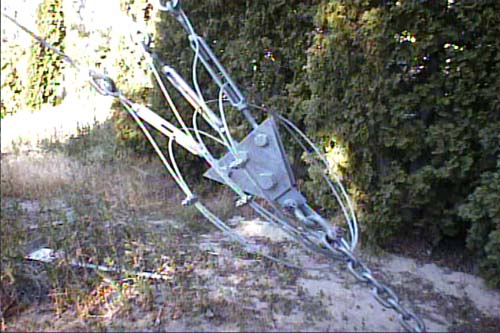

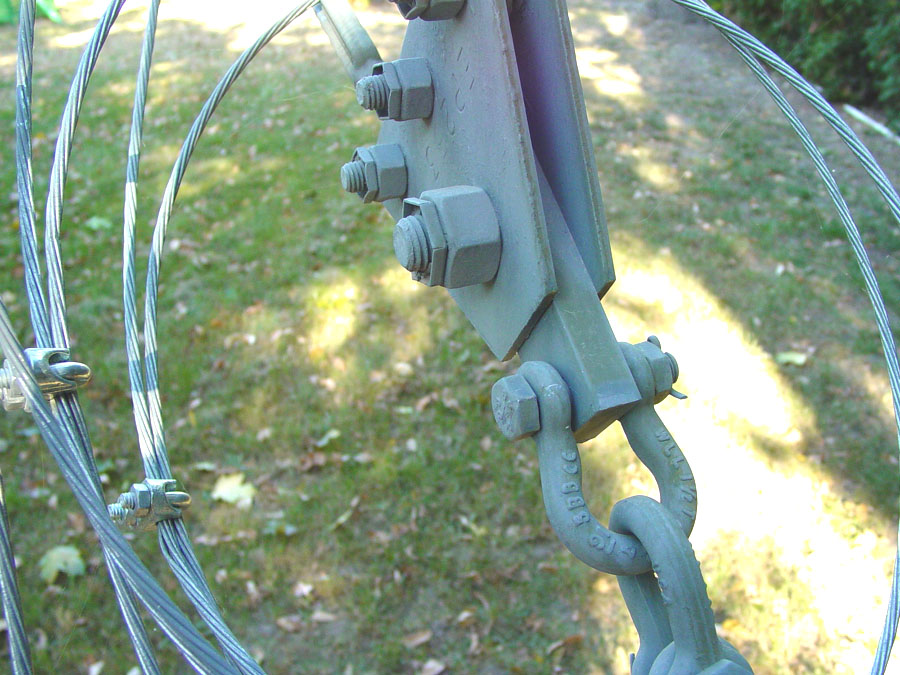

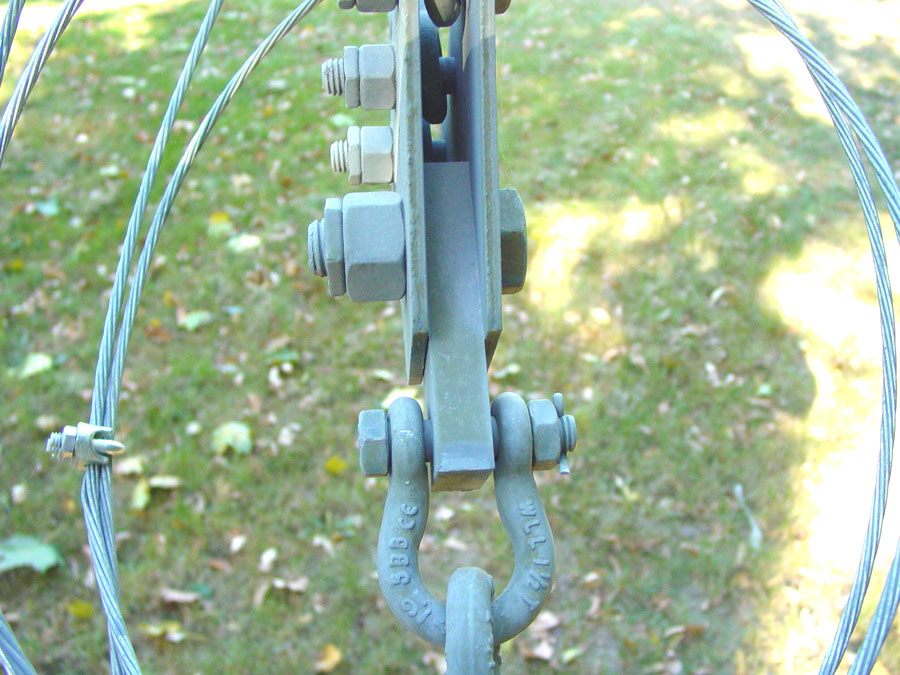

For those who might need to know the dimensions of the equalizer plates, here they are! The steel plate is 3/16" thick, galvanized. Click on the pic.

I had to get a little creative with the 'chain to equalizer plate' connection. The links were too short and too small to connect directly to the cross bolt, so, a machined steel block was made to accommodate all dimensions, (3 3/4" x 1 1/2" x 5/8"). Zinc painted to fight corrosion.

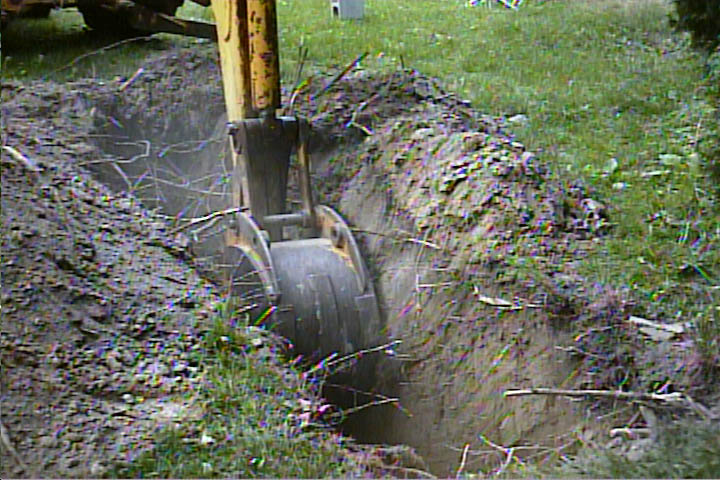

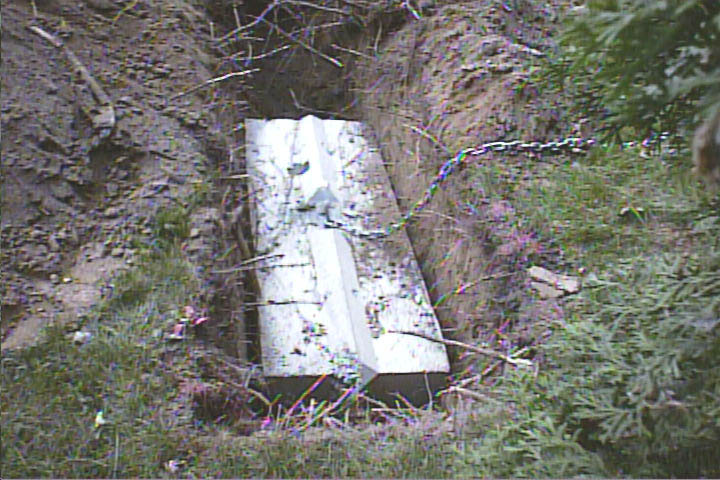

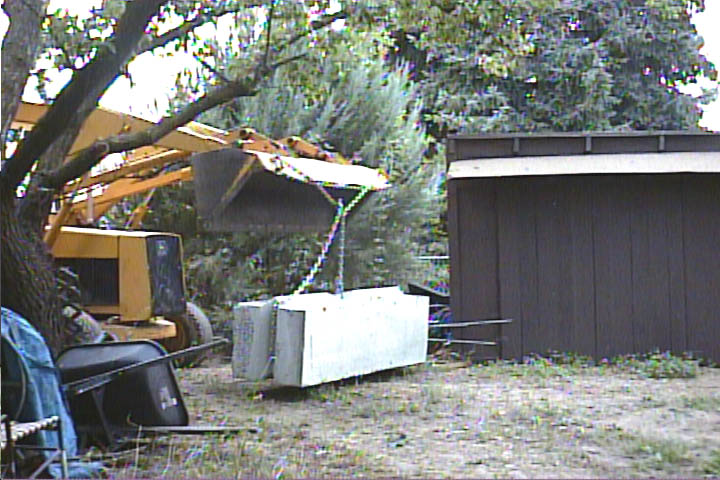

Oh yeah the chain, certainly sized for the load and connected to a 3150 pound 2' x 2' x 6' construction block, buried under 2+ feet of earth. At $25.00 each, it was allot less expensive and allot less work than pouring a slab, and much faster! The back hoe operator just dug the hole, (slot), dropped it in and covered it up, done! My back felt great just watching it happen! ;-) Total digging time for all six anchor slots, inserting the blocks, covering them and digging the two base holes was exactly five hours!

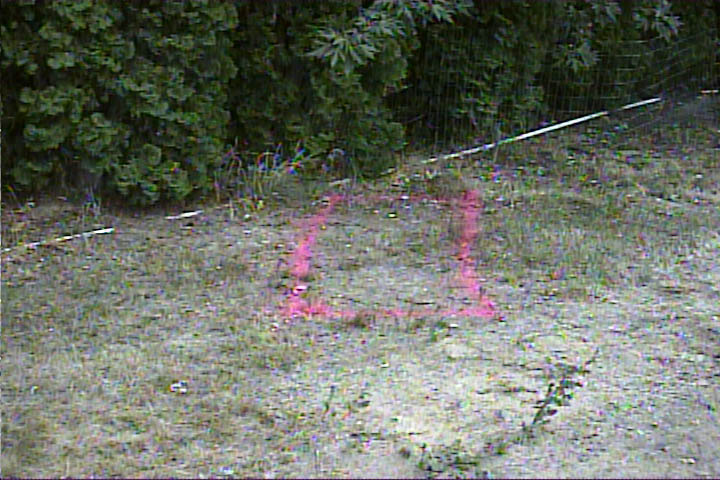

marked2.jpg (98374 bytes) digging2.jpg (110902 bytes) block.jpg (95155 bytes) 24.jpg (100499 bytes)
I also made a jig to hold the chain coming out of the ground to the proper angle for the guys, when being covered up with dirt. This was to reduce as much as possible the amount of straightening out, that the chain would have to go through from the guy tension. Worked quite well!



south base.jpg (329863 bytes) south base2a.jpg (25740 bytes) form2a.jpg (25407 bytes) 9b.jpg (65872 bytes) 4a.jpg (35707 bytes)

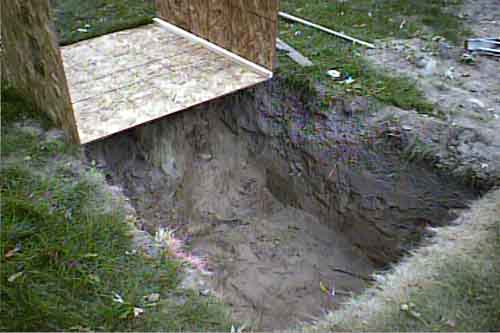

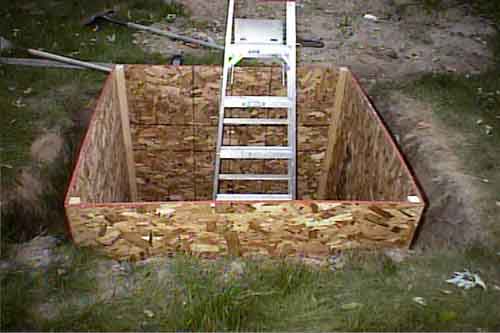

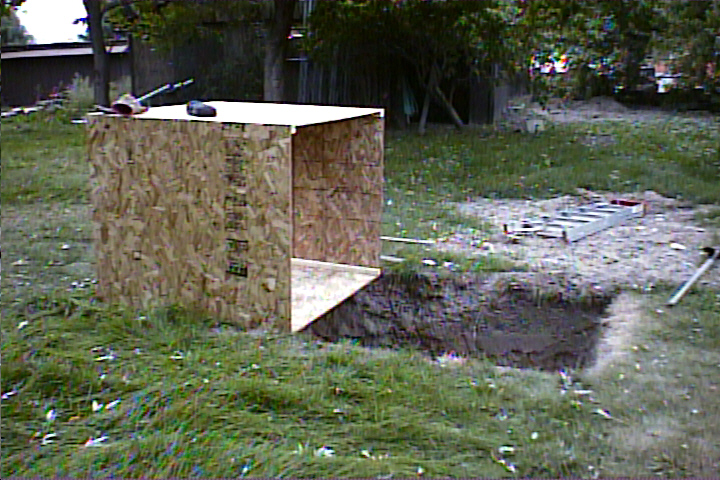

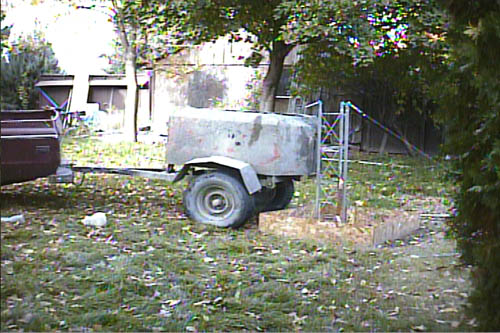

Here is one of the 4'x4'x4' forms ready for installation. Once positioned, leveled and secured, I dug out an extra 6" of dirt from the floor, which was replaced by 6" of 3/4"gravel for tower drainage. The tower base sits into the gravel approximately 2". The rebar cage was constructed, sorry no pics, paying attention to Ufer grounding techniques. Once the base was positioned and secured, fill'er up! Notice in the far right pic, just left of the tower leg, this is the solid copper 2" ground strap attached to the rebar cage.

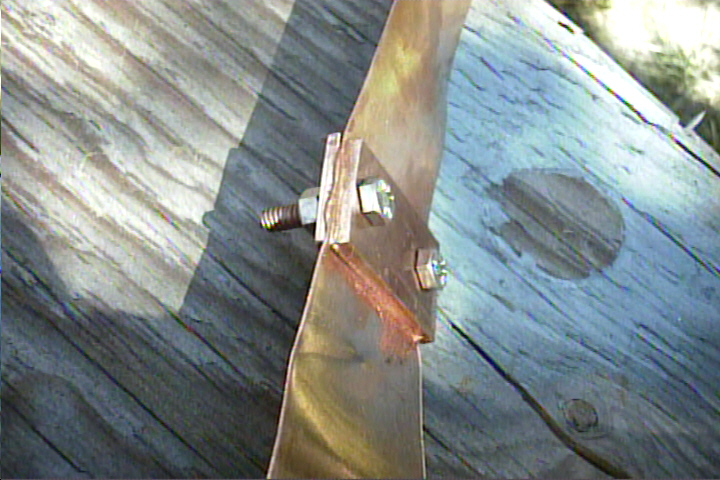

This is the splicing technique that I used to mechanically and electrically bond two pieces of 2" copper strap together. This was necessary as I chose to obtain the strap material from a local recycler, and of course you never get the exact length needed. But, I saved allot of money that way! The 'clamp' parts are 1/8" copper and the fasteners are stainless. All connections were coated with KOPR-SHIELDŽ, distributed by Thomas & Betts (CP-16) made by Jet Lube.

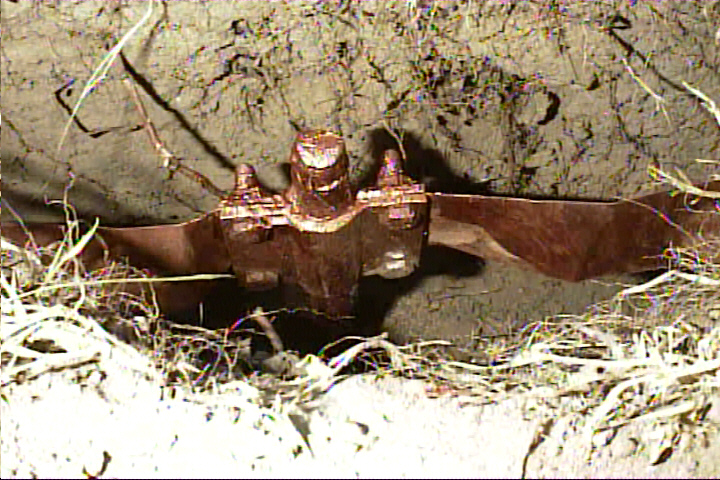

This is a typical strap to ground rod connection. The clamp is made by Polyphaser # 58R-112S. The ground rod was bought locally and is 9/16" O. D., which required the addition of shims in order for the clamps to tighten correctly. Not a problem! I cut a 1/2" copper pipe lengthwise and then cut it to the length of the clamp. The two halves fit perfectly and after coating all parts with more kopr-shield, they tightened up very well. Before burying, I covered the rods with a heavy duty plastic bag, just folded it over, to help reduce moisture from the wx and sprinklers etc.

So how do you drive an 8 foot ground rod into the ground when it has to be done under a roof that is just over 8 feet high with absolutely no room to swing a sledge or use a post driver???

You get creative!!! Here's how!

rod driver 4a.jpg (86898 bytes)

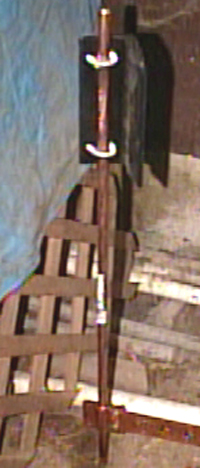

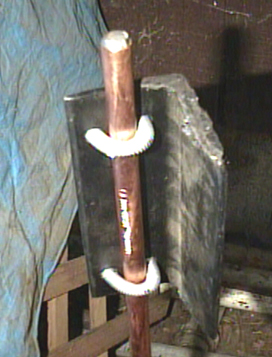

Attached to the rod is a home brew clamp, with the rod shown almost "driven home". Notice the Polyphaser clamp at the bottom. This is part of the SPG, for the coax prior to shack entry. More on this further down the page.

rod driver1b.jpg (99300 bytes) clamp2a.jpg (333216 bytes)

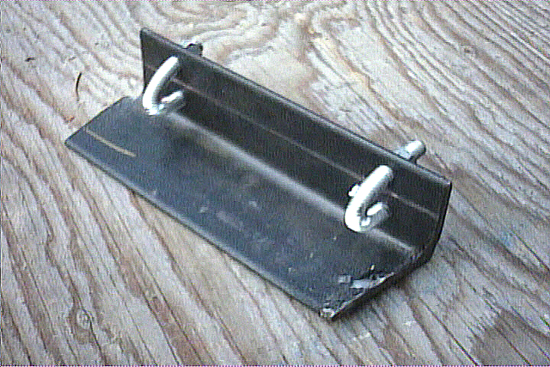

I took a piece of angle iron, drilled in some holes and made some U bolts out of 3/8" threaded rod. I attached the clamp at the middle of the rod and drove it in with a sledge until it had to be repositioned as in the above pic. Worked perfect!
This location is next to the shack and will be the secondary single point ground where I can disconnect all coax lines before they enter, in case of a storm. The main single point ground is at the base of each tower.

s tower1a.jpg (32208 bytes)  s tower5a.jpg (34980 bytes) u bolt1a.jpg (57166 bytes) u bolt3a.jpg (49314 bytes)

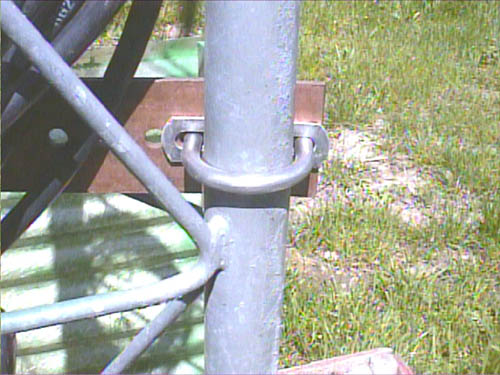

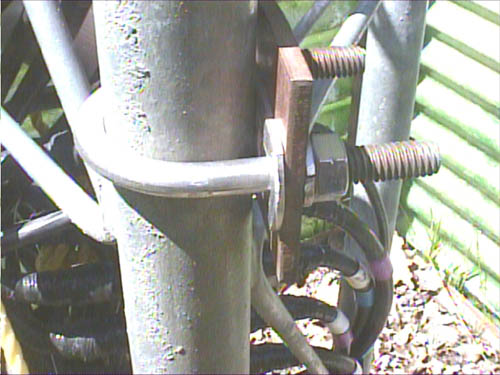

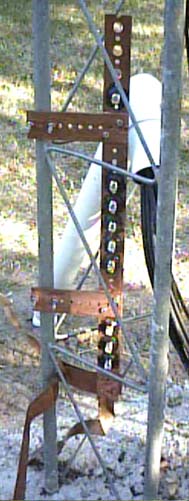

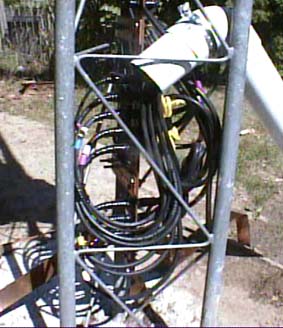

South tower grounding bar, 3/16" x 2" copper bolted to the tower with stainless U bolts. The flat bar that comes with the U bolt, is used to space the copper away from the tower leg. No galvanic action here!
As a side note, to add grounding radials or other ground connections, you could use just a stainless u-bolt and attach wires to it with lugs.

As of 10-15-17 I have added the following concerning galvanized steel (tower legs) versus stainless steel clamps/hardware. A gent on the TowerTalk reflector commented that stainless steel against copper and stainless against galvanizing isn't good. This peaked my curiosity because I always read that it's okay. Doing further research was in order. According to the following study, (link), there is some truth to this however, there is one sentence in the report that pretty much "okays" this combination. It is, "The existence of two dissimilar metals in direct contact can be of no problem whatsoever if there is no electrolyte material present". Reading the whole article it's obvious that they are referring to SST and galvanized steel, since this is the subject of the article. My pictures also back up this sentence.

For those who would like the real technical stuff about this, as well as other metal combinations, check this link:

After approximately 17 years of being clamped together, (as of 10-15-17), I removed one of the u-bolt clamps to inspect if there was any corrosion or 'issues' due to these two dissimilar metals. I found none, zero, nada! Only slight compression marks from being clamped so long. Also the copper was not corroded but is still bright, due to not being exposed to the weather because of the stainless spacer.

To me this proves, as the article states, that if there is no electrolyte present, no destructive action occurs.

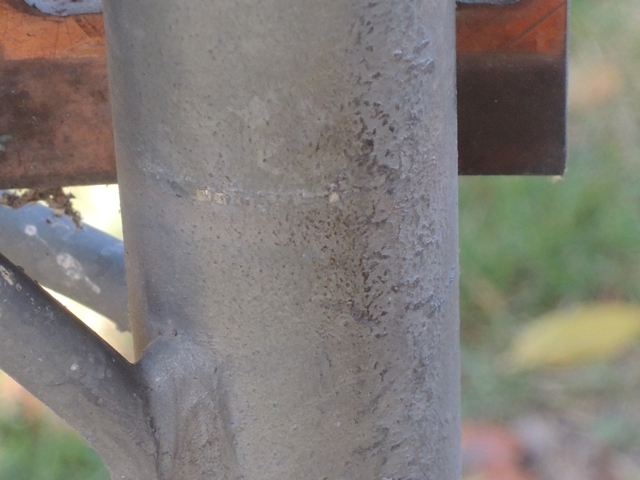

DSCN0839b.jpg (185572 bytes) Lateral line mark from the u-bolt compression

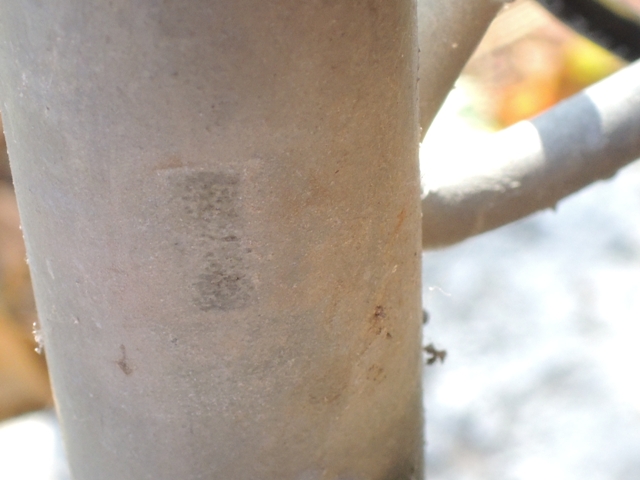

DSCN0831a.jpg (185341 bytes) Compression mark of the stainless spacer between the tower leg and copper bar

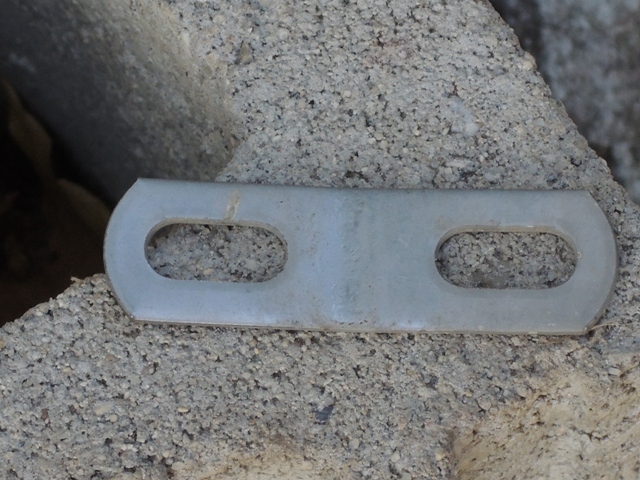

DSCN0835a.jpg (201464 bytes) Tower leg side of SST spacer, no degradation

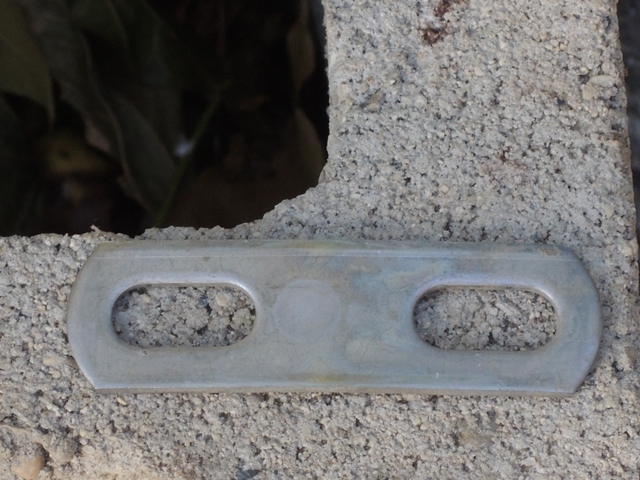

DSCN0838a.jpg (193445 bytes) Copper bar side of spacer, no degradation

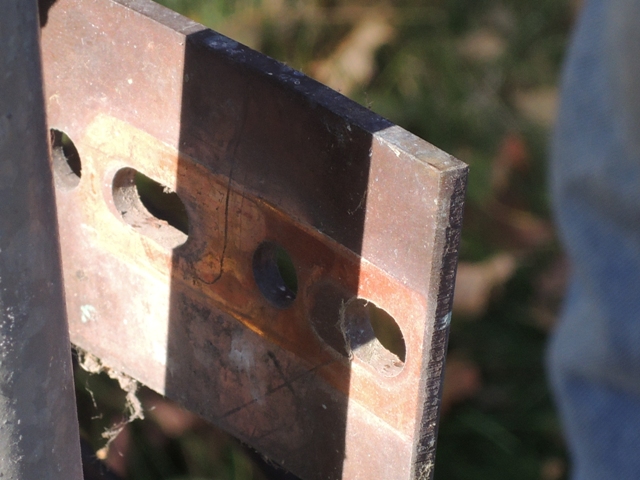

DSCN0833a.jpg (191377 bytes) Spacer side of the copper bar, no weathering due to the spacer

s tower4a.jpg (52373 bytes) air shot1a.jpg (42454 bytes)

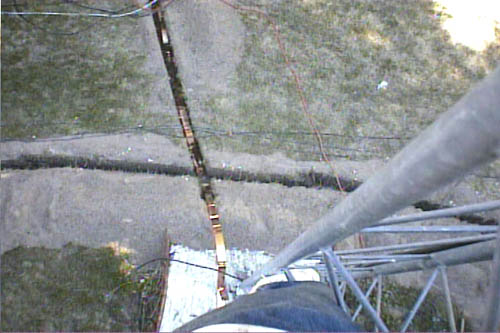

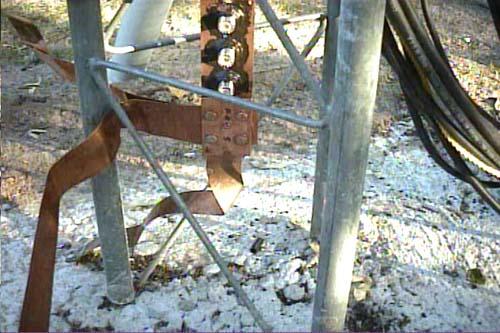

Ground strap connection from the tower rebar cage and two 32 ft long ground straps, incorporating two 8' rods each. Only one of the 32 footers is shown in the elevated shot. The lateral slot will be for the PVC tubing, carrying the buried coax. This tubing is the drainage type. It rests about 12" down on 3" of 3/4" gravel.

north base3a.jpg (45918 bytes)

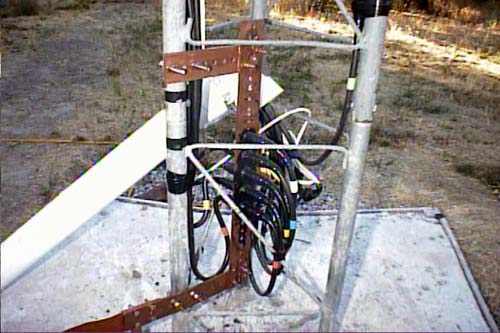

North tower grounding bar/coax assembly. Similar grounding construction as the above tower.

shack end2a.jpg (41380 bytes) shack end3a.jpg (41223 bytes)

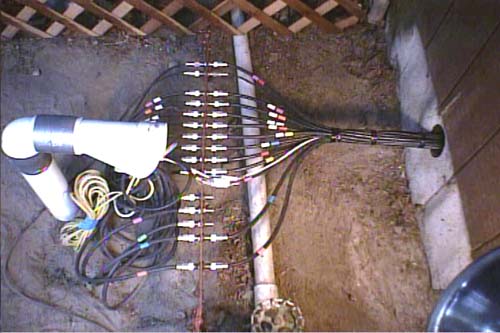

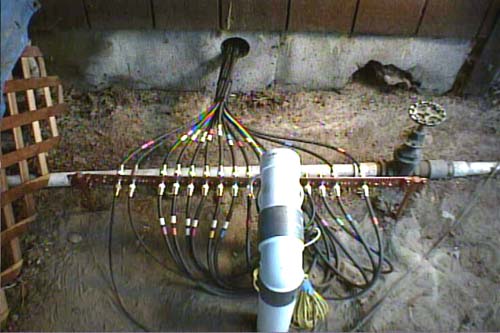

Single point ground, where the coax is connected prior to shack entry. All are mounted to a 3/16" x 2" x 33" copper bar, machined to accept the bulk head connectors. These connectors are assembled with KOPR-SHIELDŽ, and two stainless internal tooth star washers. The bar is mounted on two ground rods via another pair of Polyphaser # 58R-112S clamps, suspended 7" above the ground.

All coax and rotor cables can be quickly disconnected from the outside of the shack in case of storms. The three which are not connected, (in the second pic), to cables on both sides of the bar are spare cables routed to the towers.

All connectors are silver/Teflon, screwed onto the coax trapping the braid between the connector and the outer coax covering, as well as being soldered, thus providing a mechanical and electrical connection.

 Also incorporated are two pull ropes for future or replacement coax changes.

All coax and rotor control cables are buried approximately 12" underground, in drainage tubing which lays on 3 inches of 3/4" gravel.

Ok, for those who might be wondering, the valve is an RF parasitic regulation valve, oh no wait... it's for shutting off one section of yard sprinklers :-)

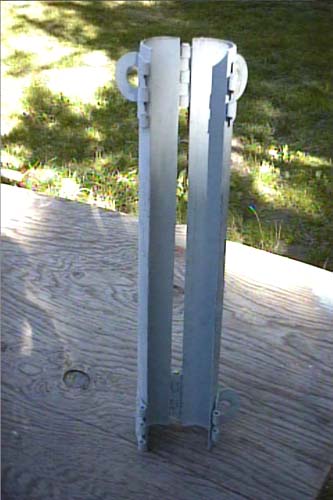

This contraption, actually two were made, is designed to aid in raising to level, the boom of an antenna, (a TH-6DXX and a 7-2 40 meter beam). The booms are so long and heavy that the manufacturer requires a mini support guy cable attached to the mast in order to keep them level. The stock clamp arrangement left allot to be desired so I came up this.

The end with the double ears, is the top where the cables attach. The key is to make sure that the cables are equal to the center of the beam at the mast. This way once raised, both ends of the beam are raised equally. The device simply clamps around the mast, and the remaining hinge pins are installed. The cables are connected and it is all raised by attaching your gin pole rope to the bottom ear. Raise it up until the boom is level and simply put a muffler clamp under the bottom and you're done!

Consider, now you're working lower on the mast, closer to the tower top, and not having to contend with two clamp parts, two bolts, lock washers and nuts and two wrenches. Much faster but most importantly, safer!

This was an after thought, it would have been more desirable to have used a solid pipe but I did not have this option as the mast was already installed when I  learned how much fun the manufacturers clamping system was! I just had to do something better.


Most recent update 10-15-2017.

Yes the ground crew deserves credit too! Couldn't do it with out them, all of them, and special thanks for the inspirational efforts of Ed, K3ZFF  ;-)
